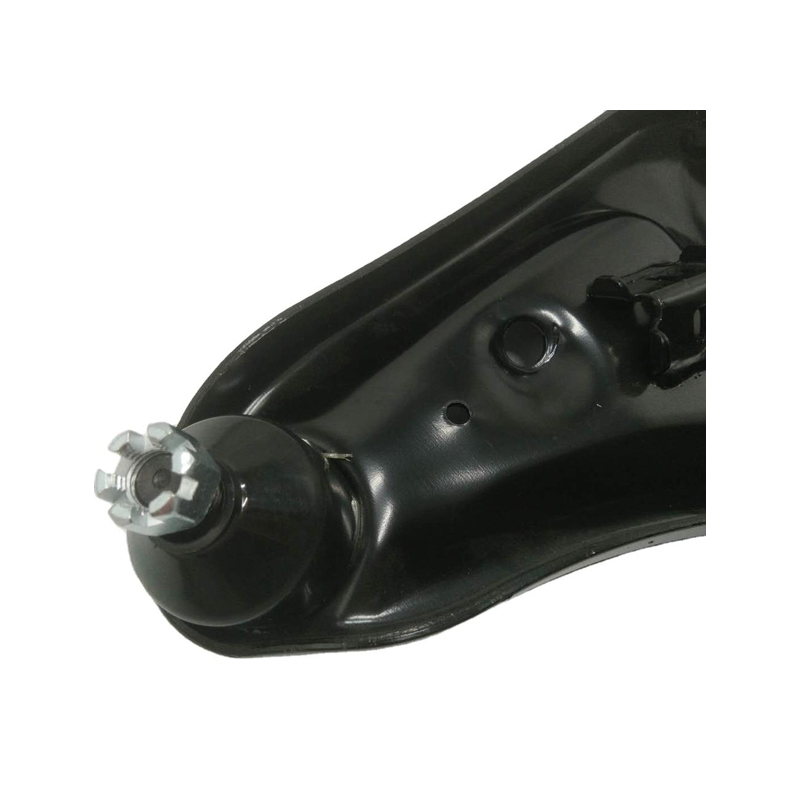

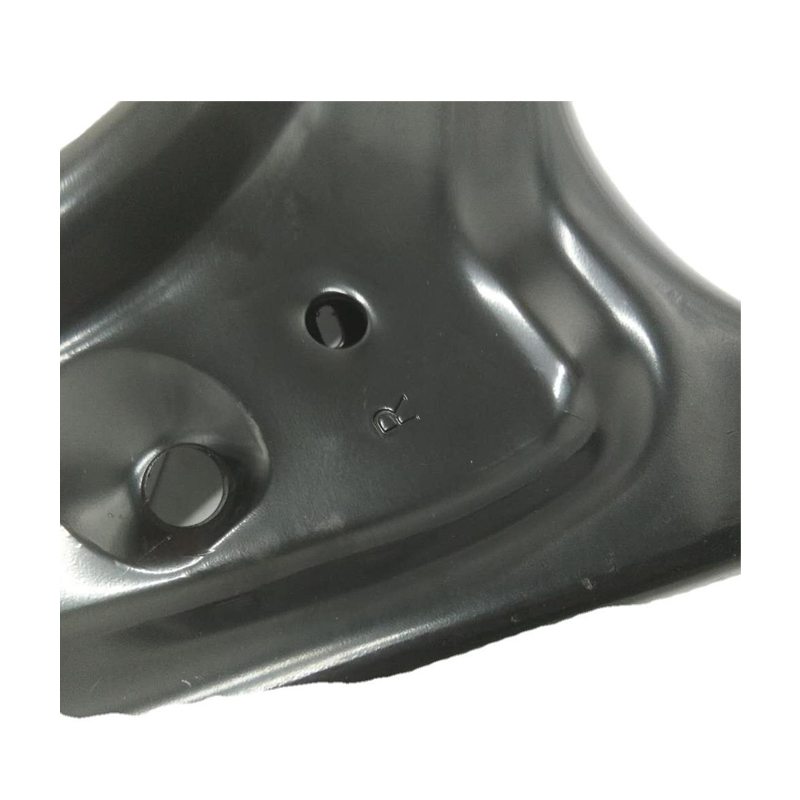

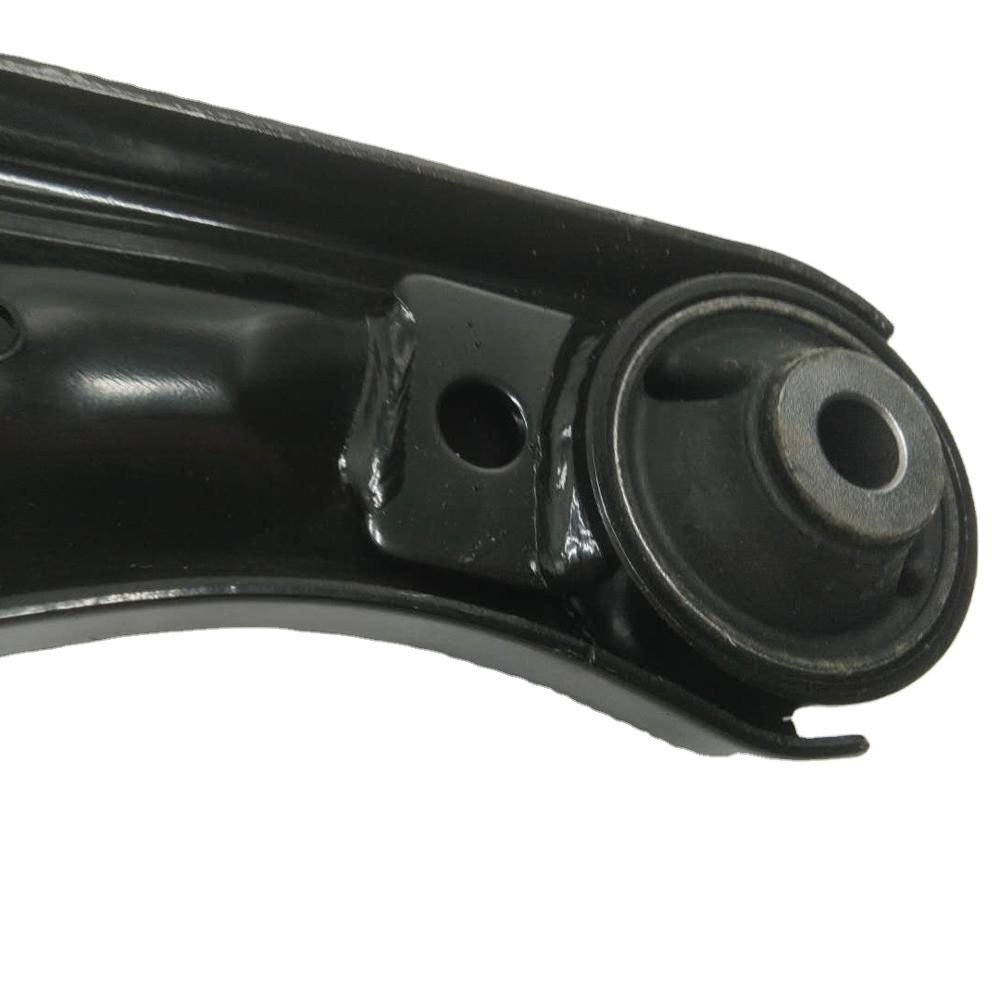

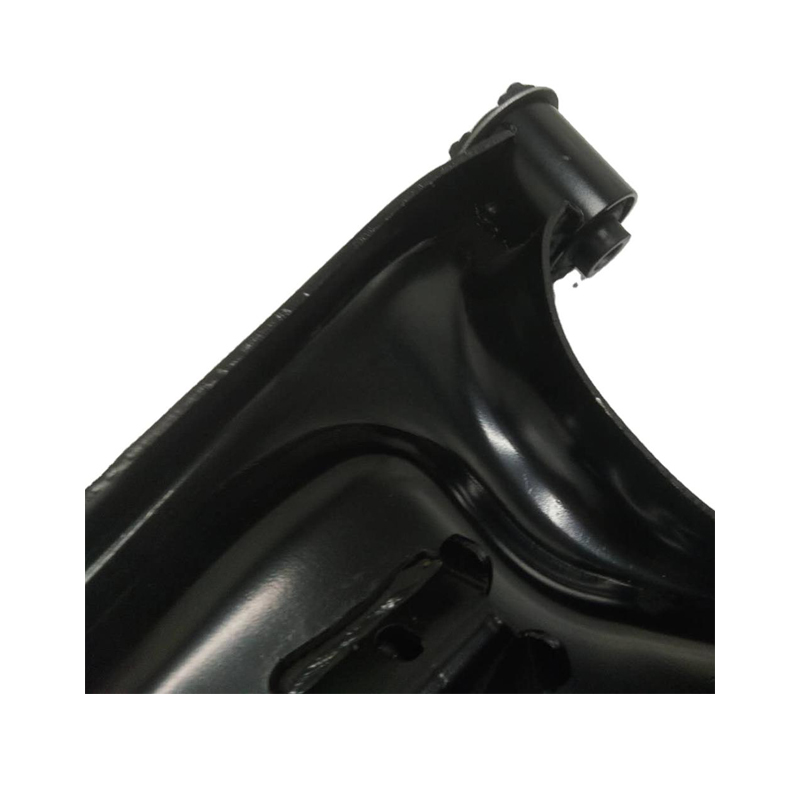

WHOLESALE STOCK CONTROL ARMS 48068B4010 DIWP10502

For DAIHATSU TERIOS (J1_) [1997-2006]TERIOS (J2_) [2005-]


50 QYT no. SC1651
  • Send
  • Collection
  • Store

Out of Stock
  • Quick Details

    Inner Diameter :   14.2mm
    Thread Size :   M14x1.5
    Cone Siz:   18.2mm
    Fitting Position :  Front Axle, Right, Lower

  • Describe

    Control arm provides a connection and pivot point between the vehicle suspension and chassis to assemble the ball joint and bushing on the high-strength body.They work in tandem to retain correct wheel tracking and position.
    They also have the additional function of maintaining dynamic wheel alignment. This reduces transmitted noise, vibration and Harshness(NVH) while providing resistance to unwanted suspension movement.

    1.Matches or exceeds OE requirements

    2.Pre-installed bushings with optimized stiffness to prevent noise

    3.Electrophoretic coating is used for anti-corrosion protection in all parts of the surface

    4.Precision tolerances for easy installation and alignmente

    5.Control arm strength validated to exceed minimum requirements





    Discover more

  • OEM & Reference

     48068B4010  BLUE PRINT : ADD68636
     48068B4011  BLUE PRINT : ADD68636
     A.B.S. : 211347  MOOG : DI-WP-10501
     ASHIKA : 7206604R  MOOG : DI-WP-10502
     ASHUKI by Palidium : D87536  TRW : JTC425

  • Model

    DAIHATSU
    TERIOS (J1_) [1997-2006]TERIOS (J2_) [2005-2017]
